ZONE DIAGRAM - Fire Alarm Systems

Buildings fitted with a fire detection system must have a zone diagram

Following the recommendations of the Australian standards, it is a mandatory requirement to have an up to date, clear and accurate Fire Alarm Zone Chart adjacent to your Fire Alarm Control Panel and any repeater panels you have in your premises.

The purpose of the Zone Chart is to assist persons responding to an alarm to quickly identify the specific location in the building and to help the Fire Brigade understand the building layout before they enter.

When the Fire Alarm System is installed, the building is divided into Fire Zones. Any Manual Call Point (Red Box) or Fire Detector that is fitted will trigger a particular zone when activated.

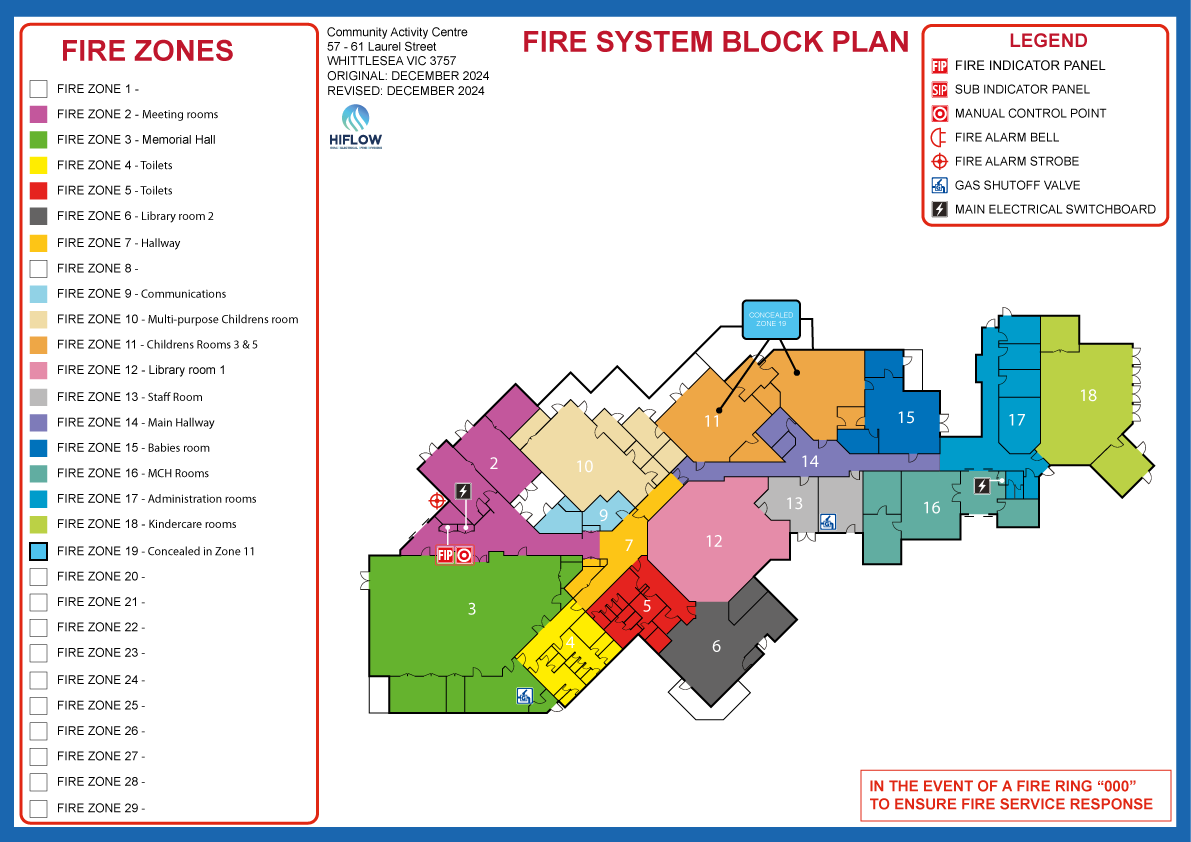

The Zone Chart shows the division of each zone area with a ‘You are Here’ arrow to identify the position of the Fire Alarm Panel. The view of the building should be orientated in relation to the Fire Alarm Panel position to minimise confusion.
